The canvas is the infinite pan-and-zoom surface where Replit Design displays your frames. Everything you design lives here: generate frames, drag them around, zoom in on a detail, and iterate until one is right.

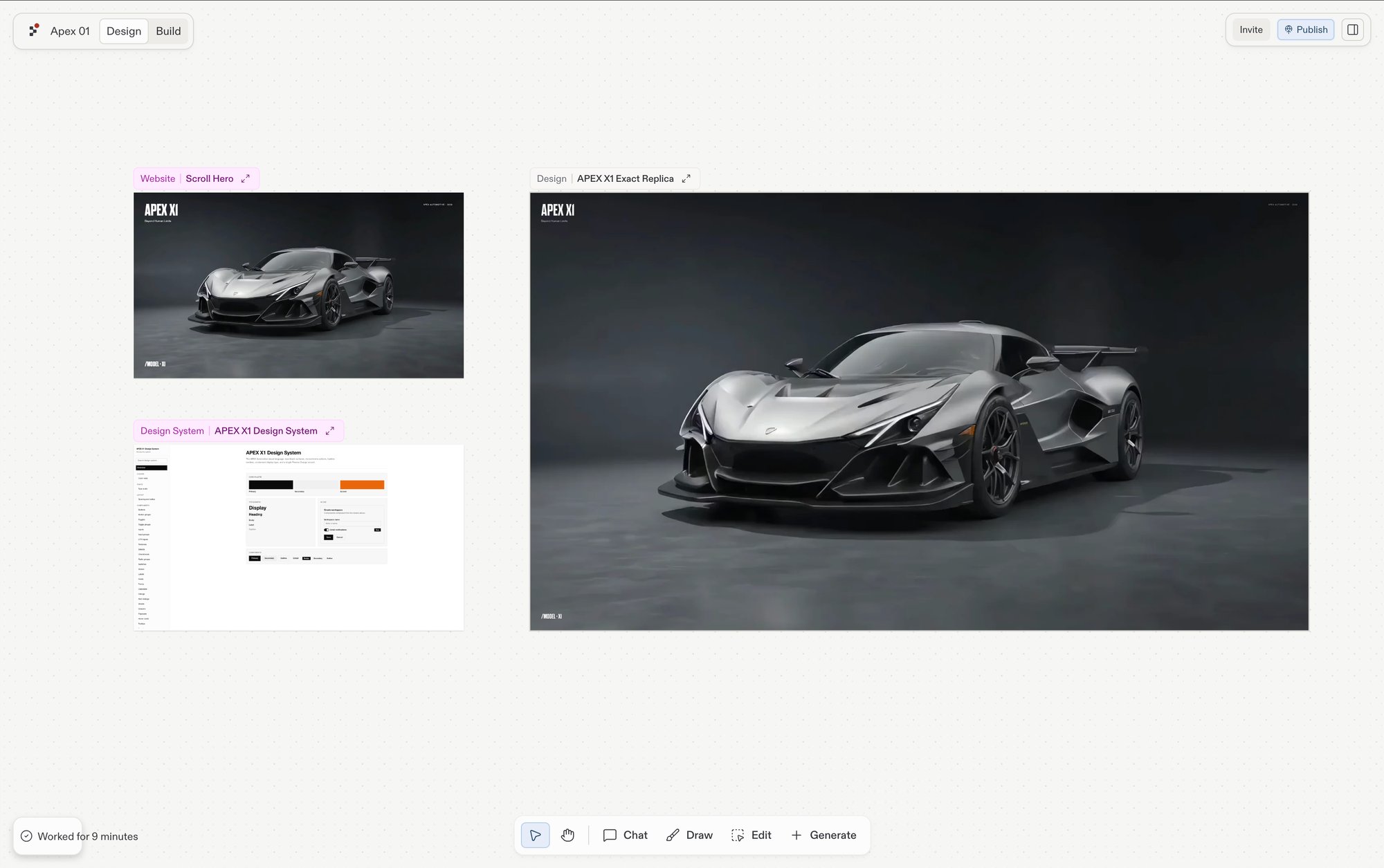

Canvas with three frames laid out on the board: a Website (Scroll Hero), an APEX X1 Design System, and a Design mockup of the APEX X1 supercar, with the floating toolbar (Chat, Draw, Edit, Generate) at the bottom

​
Open the canvas

The canvas is the first thing you see in Replit Design. In a project, select Design in the header and the canvas fills the pane; select Build to switch back to your running app.

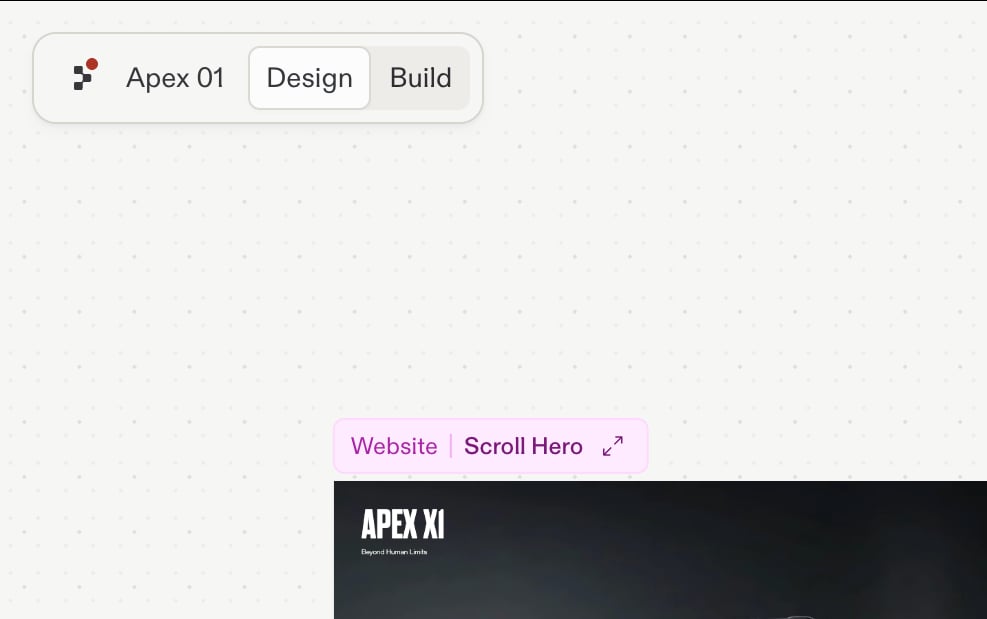

Close-up of a project header with the Design and Build toggle, Design selected, above frames on the canvas
Starting fresh at replit.com/design prompts you to create a new design, which opens on the canvas. See Design vs. Build for when to use each surface.

​
What lives on the canvas

  • Frames: every tile on the board. A frame can be a design mockup, a web app, a mobile app, slides, an image, a video, or a vector graphic. Generate them from a chat prompt, the toolbar’s Generate menu, or the library panel. Everything you do to a frame, Build, Focus, suggestions, happens through the frame itself: see Frames.
  • Drawings and notes: markup you add with the Draw tool, such as sketches, arrows, shapes, and sticky notes. Agent reads your markup, so you can circle a problem area and ask for a change.
  • The chat panel: Agent chat docked alongside the canvas. Selecting frames before sending a message attaches them as snapshots so Agent has visual context.
For what each component is and how they fit together, see the components overview. Pan, zoom, and select work from any tool unless noted. Panning:
  • Trackpad: two-finger drag.
  • Mouse: middle-click-and-drag, or hold spacebar and left-click-drag.
  • Pan tool: click-and-drag with the left mouse button.
Zooming:
  • Trackpad: pinch.
  • Mouse: Ctrl (or Cmd on macOS) + scroll wheel.
  • Keyboard: Cmd/Ctrl + + to zoom in, Cmd/Ctrl + - to zoom out, Cmd/Ctrl + 0 to reset zoom.
Zoom is anchored on the cursor, so the spot under the cursor stays put as the rest of the board scales around it. Selecting:
  • Single frame: click it with the Interact tool.
  • Multi-select: hold Shift and click each frame, or drag a marquee rectangle across the board.
  • Deselect: click an empty area, or press Escape.
Selecting one or more frames surfaces the per-frame action bar and attaches those frames to the next Agent message as snapshots.

​
Keyboard shortcuts

​
Right-click menu

Right-click anywhere on the board to open a context menu. The menu is contextual, so the actions adapt to what’s under the cursor: a frame gets frame actions, while empty canvas gets board-level actions, and app frames add Refresh artifact. On a selected frame the menu includes:

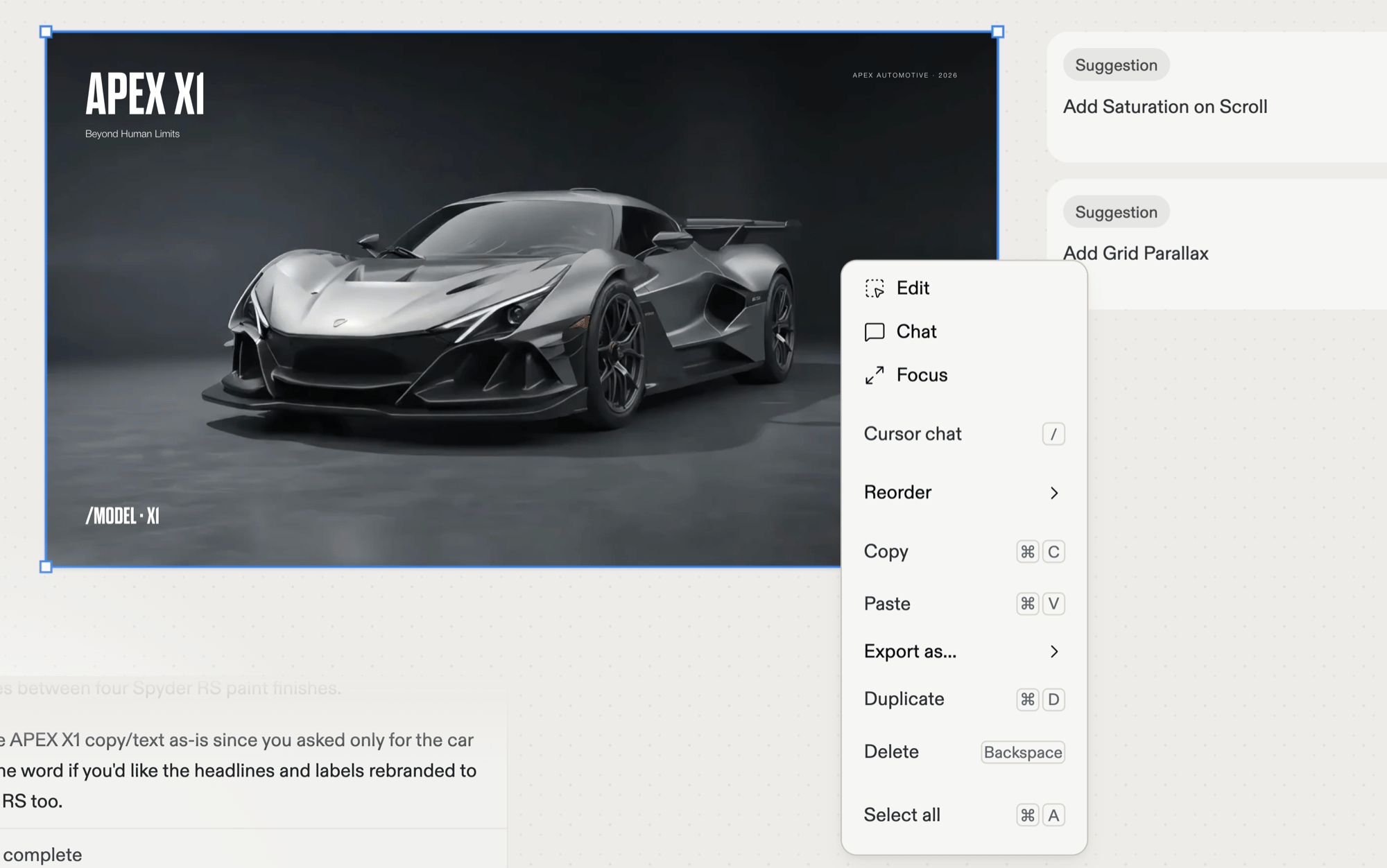

The right-click menu open on a selected Design frame showing a gray Apex X1 supercar, with Edit, Chat, Focus, Cursor chat, Reorder, Copy, Paste, Export as…, Duplicate, Delete, and Select all actions.

The right-click menu on a selected frame.

​
Export a frame as PNG

Save any artifact or design frame as a PNG image. This is useful for sharing a preview in a doc or chat, capturing a snapshot before you iterate further, or sending a screenshot to a teammate.
1

Select the frame

Select the artifact or design frame you want to export, then wait for it to finish loading.
2

Choose Export

Select Export in the frame’s action bar. You can also right-click the frame and select Export as… > PNG. The image downloads to your computer with a filename based on the frame’s name.
To copy the selected frame as a PNG instead of downloading it, press Cmd+Shift+C (or Ctrl+Shift+C on Windows and Linux).
The exported PNG matches what the frame currently shows on the canvas. If your app or design is still loading, wait for it to fully render before exporting.

​
The canvas and the live app

The canvas and the live app preview share the same pane, and a few modes bridge them:
  • Focus mode: the Focus action on a selected frame expands it to fill the view. Select Exit focus at the top of the board to return to the canvas.
  • Read-only mode: when the canvas is locked inside a background-task context, iteration actions hide and only Focus remains.
Building a new app from a Design frame requires Core or Pro; every other canvas capability works on every plan. See Billing for plan details.
Reference
  • Components overview: the building blocks and how they fit together.
  • Frames: frame kinds; the per-frame action bar; Build and Focus.
  • Elements: the individual pieces inside a frame.
  • Toolbar: the full tool catalog.
